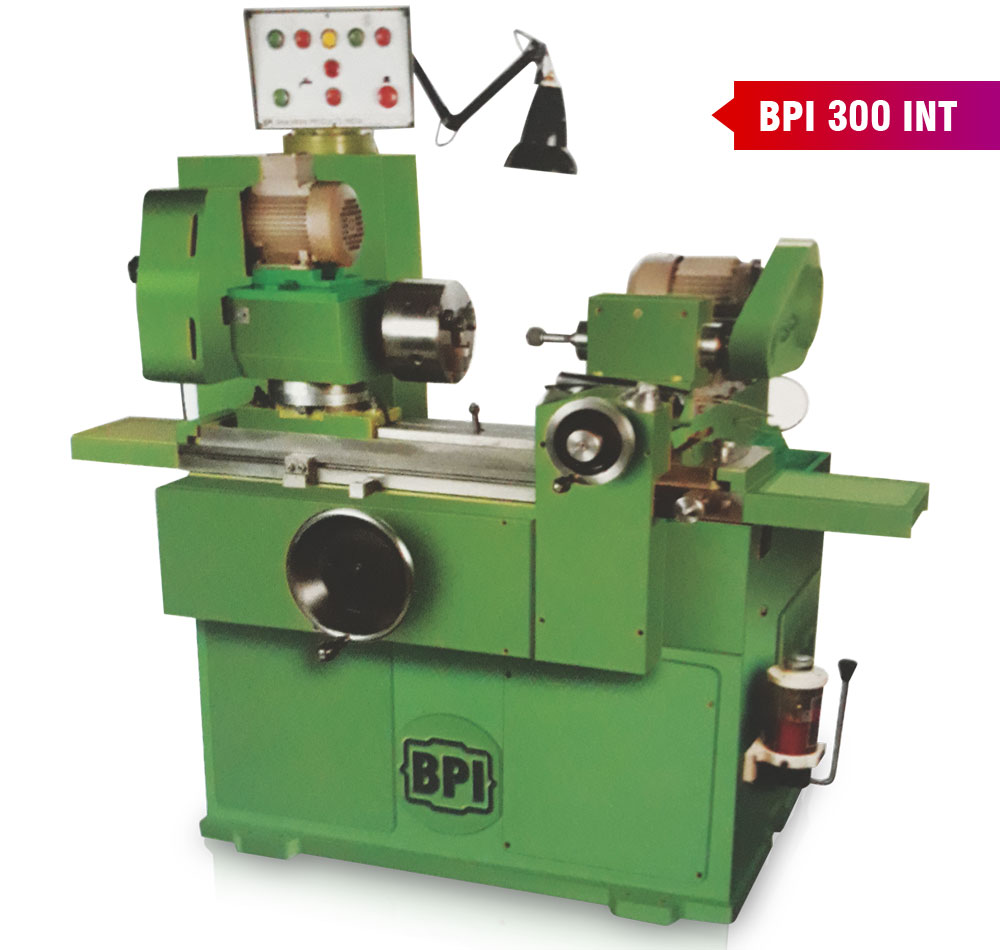

Model No. | BPI-300 INT |
---|---|
Max. Grinding Length | 150MM |
Center Height | 175MM |
Max. Work Diameter Ground | 200MM |
Table Feed | Merch./Hyd. |
Max. Swivel of Table | 7o |
Work Head & Tail Stock | |
No. of Speed of Work Head Spindle | Variable/AC Drive |
Morse Taper in Workhead | MT-4 |
Swivel of Workhead | 60o |
Work Head Motor 1440 Rpm | 1 H.P. |
Table Feed | |
Table Feed | Mech./Hyd. |
Hydraulic Motor 1440 Rpm | 1 H.P. |
Table Feed Motor 1440 Rpm (Mech.) | H.P. |
No. Of Speed Of Table Feed | 3 |
Internal Grinding Spindle | |
Grinding Spindle Outer Diameter | 60-80MM |
Max. Quill Lenght | 30 to 1500MM |
Quill Dia | 10MM to 30MM |
Min. & Max. Dia of Hole Grinding | 5-120MM |
Spindle Speed | 9000-18000 |
Internal Grinding Attachment Motor 2800 Rpm | 2 H.P. |
Coolant & Hydraulic Tank | |
Cap. Of Coolant Tank | 125 Ltr. |
Coolant Tank Motor | 0.5 H.P. |
Cap. Of Hydraulic Tank | 75 Ltr. |
Weight | |
Approx. Gross Weight | 2000 Kgs. |
